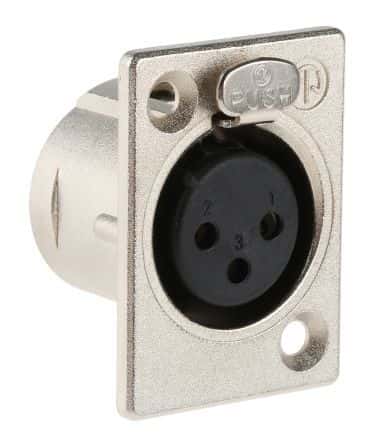

3-pole female audio/RCA connector with straight, panel-mount orientation and solder lug terminals. Features a durable metal body and housing, silver-colored with silver-plated bronze contacts. Rated for 16A current and 50V DC, operating between -30°C and 80°C, with an IP40 ingress protection rating. RoHS compliant and UL94 HB flammability rated.
PackageMetal
Voltage Rating50V
Current Rating16A
MountingPanel
Quick Jump:
Technical Specifications
Neutrik NC3FP-1 technical specifications.
General
Body Material
Metal
Package/Case
Metal
Color
Silver
Contact Gender
Female
Contact Material
Bronze, Silver
Contact Plating
Silver
Current Rating
16A
Depth
29.4mm
Flammability Rating
UL94 HB
Gender
Female
Length
27mm
Max Current Rating
16A
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Panel
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Plating
Nickel
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
P
Termination
Solder
Voltage Rating
50V
DC Rated Voltage
50V
Weight
0.846575oz
Compliance
RoHS
Compliant
Datasheet
Neutrik NC3FP-1 Datasheet
Download the complete datasheet for Neutrik NC3FP-1 to view detailed technical specifications.
