3-contact male circular connector with solder termination. Features a zinc alloy metal body and brass contacts with gold plating. Rated for 16A current and 50V DC, operating between -30°C and 80°C. Panel mountable with a straight orientation and IP40 rating.
PackageMetal
Voltage Rating50V
Current Rating16A
MountingPanel
Quick Jump:
Technical Specifications
Neutrik NC3MP-B technical specifications.
General
Body Material
Metal
Package/Case
Metal
Color
Black
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold
Current Rating
16A
Flammability Rating
UL94 HB
Gender
Male
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Panel
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Orientation
Straight
Package Quantity
40
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
P
Termination
Solder
Voltage Rating
50V
DC Rated Voltage
50V
Weight
0.740753oz
Compliance
RoHS
Compliant
Datasheet
Neutrik NC3MP-B Datasheet
Download the complete datasheet for Neutrik NC3MP-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

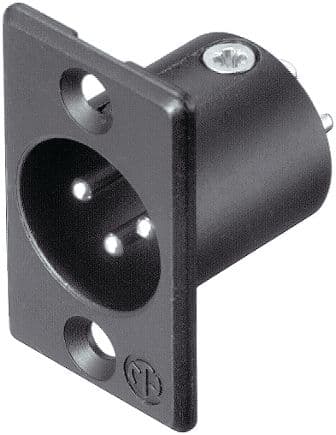

Product Images
