Technical Specifications

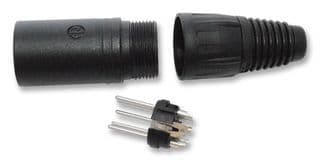

Neutrik NC5MX-BAG technical specifications.
General
| Approvals | UL |
| Body Material | Metal |
| Package/Case | Metal |
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Silver |
| Current Rating | 7.5A |
| Flammability Rating | UL94 HB |
| Gender | Male |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 50V |
| Mount | Cable |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Number of Positions | 5 |
| Orientation | Straight |
| Package Quantity | 25 |
| Reach SVHC Compliant | No |
| Series | X |
| Termination | Solder |
| Voltage Rating | 50V |
| Weight | 1.065274oz |
Compliance
| RoHS | Compliant |
Datasheet
Neutrik NC5MX-BAG Datasheet
Download the complete datasheet for Neutrik NC5MX-BAG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
