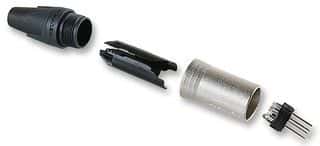

Six-contact, male cable connector with silver-plated brass contacts rated for 7.5A and 50V. Features a metal body and housing, straight orientation, and solder termination for 18AWG wire. Operates within a temperature range of -30°C to 80°C and offers IP40 protection.
PackageMetal
Voltage Rating50V
Current Rating7.5A
MountingCable
Quick Jump:
Technical Specifications
Neutrik NC6MXX technical specifications.
General
Body Material
Metal
Package/Case
Metal
Color
Silver
Contact Current Rating
7.5A
Contact Gender
Male
Contact Material
Brass, Silver
Contact Plating
Silver
Current Rating
7.5A
Flammability Rating
UL94 HB
Gender
Male
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Cable
Number of Contacts
6
Number of Ports
1
Number of Positions
6
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Plating
Nickel
Ratings
IP40
Reach SVHC Compliant
No
Series
XX
Termination
Solder
Voltage Rating
50V
Weight
1.065274oz
Wire/Cable Gauge
18AWG
Compliance
RoHS
Not Compliant
