Technical Specifications
Neutrik NC7FP-1 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Silver |
| Current Rating | 5A |
| Flammability Rating | UL94 HB |
| Gender | Female |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Mount | Panel |
| Number of Contacts | 7 |
| Number of Ports | 1 |
| Number of Positions | 7 |
| Orientation | Straight |
| Package Quantity | 10 |
| Plating | Nickel |
| Series | P |
| Termination | Solder |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 1oz |
Compliance
| RoHS | Compliant |
Datasheet
Neutrik NC7FP-1 Datasheet
Download the complete datasheet for Neutrik NC7FP-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

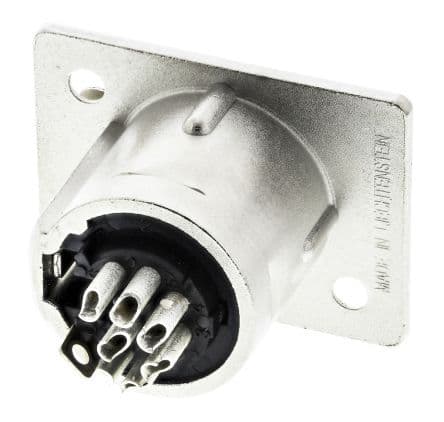

Product Images
