Seven-position female solder termination power connector with gold-plated brass/bronze contacts, rated for 5A and 50V AC. Features a black metal housing with a UL94 HB flammability rating and operates within a temperature range of -30°C to 80°C. This IP40 rated connector is designed for cable mounting and supports wire gauges up to 18AWG.
PackageMetal
Voltage Rating50V
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
Neutrik NC7FXX-B technical specifications.
General
Body Material
Metal
Package/Case
Metal
Color
Black
Contact Current Rating
5A
Contact Gender
Female
Contact Material
Brass, Bronze
Contact Plating
Gold
Current Rating
5A
Flammability Rating
UL94 HB
Gender
Female
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
50V
Mount
Cable
Number of Contacts
7
Number of Ports
1
Number of Positions
7
Orientation
Vertical
Package Quantity
10
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
No
Series
XX
Termination
Solder
Voltage Rating
50V
Weight
1.305137oz
Wire/Cable Gauge
18AWG
Compliance
RoHS
Compliant
Datasheet
Neutrik NC7FXX-B Datasheet
Download the complete datasheet for Neutrik NC7FXX-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

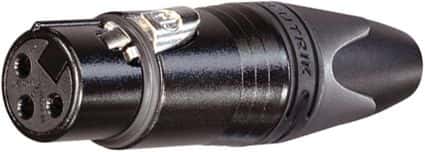

Product Images
