PackageMetal
Voltage Rating50V
Current Rating16A
MountingPanel
Quick Jump:
Technical Specifications
Neutrik NF2D-4 technical specifications.
General
Body Material
Metal
Package/Case
Metal
Color
Yellow, Silver
Contact Gender
Female
Contact Material
Brass, Gold
Contact Plating
Gold
Current Rating
16A
Gender
Female
Insulation Color
Yellow
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
50V
Mount
Panel
Number of Contacts
2
Number of Ports
1
Orientation
Horizontal
Outside Diameter
23.6mm
Package Quantity
10
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
50V
Weight
0.740753oz
Compliance
RoHS
Compliant
Datasheet
Neutrik NF2D-4 Datasheet
Download the complete datasheet for Neutrik NF2D-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

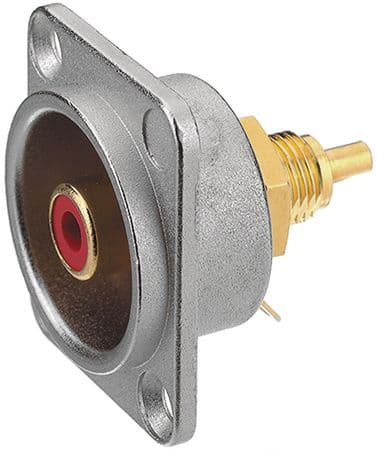

Product Images
