Technical Specifications

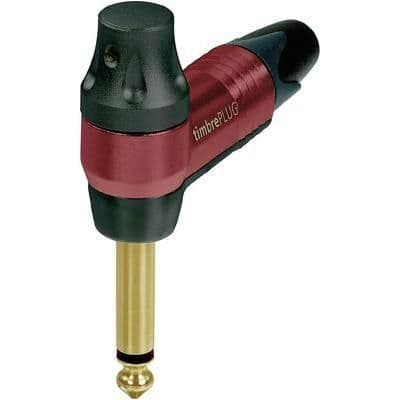

Neutrik NP2RX-TIMBRE technical specifications.
General
Body Material
Plastic
Color
Red
Contact Material
Brass, NICKEL PLATED
Contact Plating
Gold, Nickel
Gender
Male
Mating Cycles
1000
Max Operating Temperature
65°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Contacts
2
Number of Ports
1
Number of Positions
1
Orientation
Right Angle
Package Quantity
50
Pin Diameter
6.35mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
timbrePLUG PX
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Neutrik NP2RX-TIMBRE Datasheet
Download the complete datasheet for Neutrik NP2RX-TIMBRE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
