Technical Specifications
Neutrik NYS226 technical specifications.
General
| Body Material | Metal |
| Package/Case | Metal |
| Color | Silver |
| Contact Material | NICKEL PLATED, Brass |
| Contact Plating | Silver, Nickel |
| Gender | Male |
| Insulation Material | Thermoplastic |
| Mating Cycles | 1000 |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Cable |
| Number of Contacts | 2 |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Pin Diameter | 3.5mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | NYS |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Neutrik NYS226 Datasheet
Download the complete datasheet for Neutrik NYS226 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

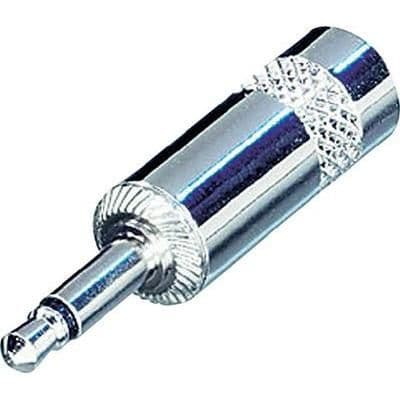

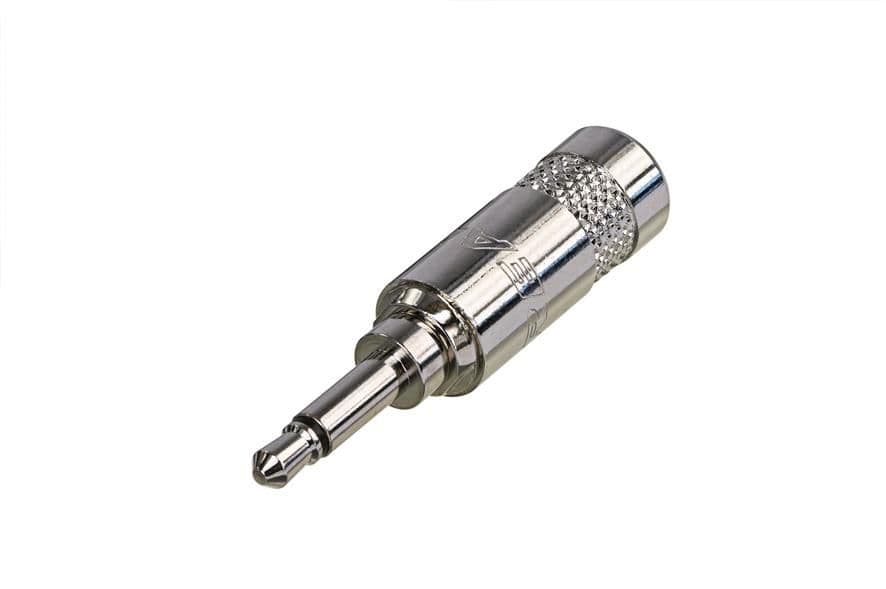

Product Images
