Newhaven Display
NHD-0420H1Z-FSW-GBW-33V3

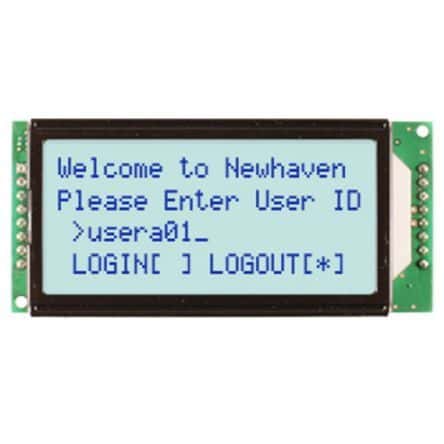

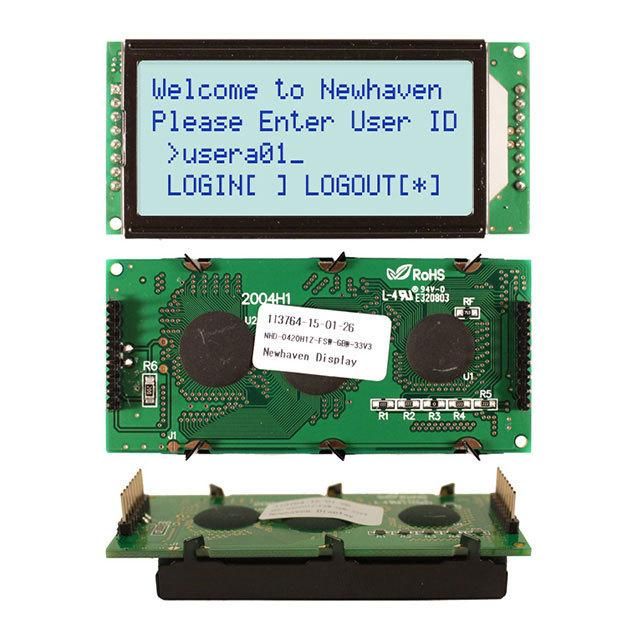

STN Transflective LCD Module, 20x4 Char, White LED Backlight, 3.3V
20-character by 4-line character LCD module featuring STN positive transflective display technology. Offers a white background with white LED backlight for clear visibility. Operates with a 3.3V supply voltage and utilizes a parallel interface for data communication. Designed for a wide operating temperature range from -20°C to 70°C.
Quick Jump:
Technical Specifications
Newhaven Display NHD-0420H1Z-FSW-GBW-33V3 technical specifications.
General
Background Color
White
Backlight Type
LED
Fluid Type
STN POSITIVE
Interface
Parallel
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Number of Characters
80
Operating Supply Voltage
3.3V
Package Quantity
100
Packaging
Bulk
Compliance
RoHS
Compliant
Datasheet
Newhaven Display NHD-0420H1Z-FSW-GBW-33V3 Datasheet
Download the complete datasheet for Newhaven Display NHD-0420H1Z-FSW-GBW-33V3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
