128x64 pixel monochrome graphic display with black background and white LED backlight. Features FSTN POSITIVE fluid type and SPI interface for efficient data transfer. Operates reliably across a wide temperature range from -20°C to 70°C.
Quick Jump:
Technical Specifications
Newhaven Display NHD-C12864A1Z-FS(RGB)-FBW-HT1 technical specifications.
General
Background Color
Black
Backlight Type
LED
Fluid Type
FSTN POSITIVE
Interface
SPI
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Packaging
Tray
Resolution (height)
64pixel
Resolution (width)
128pixel
Compliance
RoHS
Not Compliant
Datasheet
Newhaven Display NHD-C12864A1Z-FS(RGB)-FBW-HT1 Datasheet
Download the complete datasheet for Newhaven Display NHD-C12864A1Z-FS(RGB)-FBW-HT1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

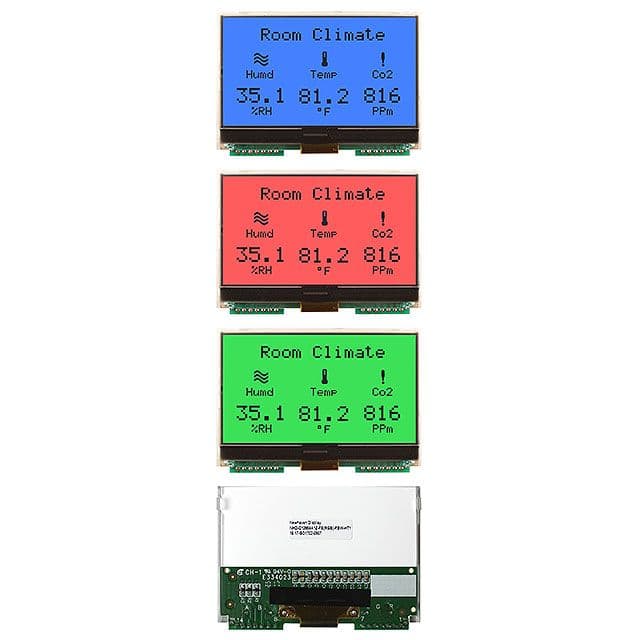

Product Images
