The Nexans RG59 cable features a black color, copper and steel conductor material, and a polyethylene dielectric material. It has an impedance of 75 ohms and a PVC jacket material. The cable is designed for operation at temperatures as low as -40°C and is mounted as a cable. It has an outside diameter of 4.95mm and is rated for AC voltages up to 1.7kV.
MountingCable
Quick Jump:
Technical Specifications
Nexans RG59 technical specifications.
General
| Color | Black |
| Conductor Material | Copper, Steel |
| Dielectric Material | PE |
| Impedance | 75R |
| Jacket Material | PVC |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Outside Diameter | 4.95mm |
| Voltage Rating (AC) | 1.7kV |
Compliance
| RoHS | Compliant |
Datasheet
Nexans RG59 Datasheet
Download the complete datasheet for Nexans RG59 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

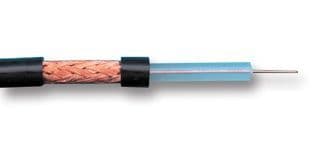

Product Images
