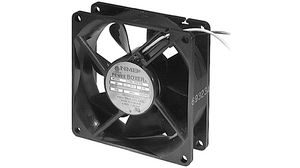

12VDC axial fan, 80x25mm, delivering 38.8 CFM airflow at 3250 RPM. Features durable ball bearing construction and a 2-wire lead termination. Operating temperature range from 14°C to 158°C with a maximum power consumption of 2.76W. This black, PVC-constructed fan has a noise level of 34dB.
FrequencyNot RequiredHz
PackageAxial
Voltage Rating12V
Power2.76W
Quick Jump:
Technical Specifications
Nmb-Minebea 3110KL-04W-B50-P00 technical specifications.
General
Airflow
38.8CFM
Bearing Type
Ball
Package/Case
Axial
Color
Black
Depth
80mm
Diameter
91mm
Height
80mm
Lead Free
Lead Free
Length
80mm
Material
PVC
Max Operating Temperature
158°C
Min Operating Temperature
14°C
Max Power Dissipation
2.76W
Noise (dB)
34dB
Noise Level
34dB
Operating Frequency
Not RequiredHz
Power Consumption
2.76W
Reach SVHC Compliant
No
RPM
3250RPM
Series
3110KL
Termination
2 Wire Leads
Voltage Rating
12V
DC Rated Voltage
12V
Weight
0.209lb
Width
25mm
Compliance
RoHS
Compliant
Datasheet
Nmb-Minebea 3110KL-04W-B50-P00 Datasheet
Download the complete datasheet for Nmb-Minebea 3110KL-04W-B50-P00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
