25-position, 2-row female D-Subminiature connector featuring gold-plated brass/bronze signal contacts for reliable connectivity. This through-hole, panel-mount component offers a 5A current rating and operates within a -50°C to 100°C temperature range. Constructed with a steel body and black nylon dielectric, it boasts UL94 V-0 flammability rating and is RoHS compliant.
Current Rating5A
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
Norcomp 171-025-213R001 technical specifications.
General
Body Material
Steel
Color
Black
Contact Material
Brass, Bronze
Contact Plating
Gold
Contact Type
Signal
Current Rating
5A
Dielectric Material
Nylon
Flammability Rating
UL94 V-0
Gender
Female
Height
10.2mm
Housing Color
Black
Lead Free
Lead Free
Length
53mm
Material
Metal
Max Operating Temperature
100°C
Min Operating Temperature
-50°C
Mount
Through Hole, Panel
Number of Contacts
25
Number of Positions
25
Number of Rows
2
Package Quantity
50
Packaging
Tray
Plating
Nickel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
171
Termination
Through Hole
Width
12.6mm
Compliance
RoHS
Compliant
Datasheet
Norcomp 171-025-213R001 Datasheet
Download the complete datasheet for Norcomp 171-025-213R001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

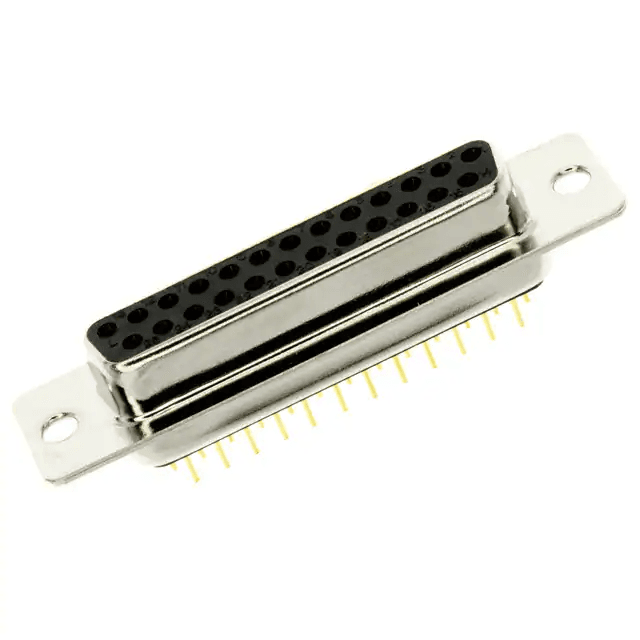

Product Images
