50-position, 3-row D-Subminiature receptacle connector for panel mounting. Features brass signal contacts with gold plating and a steel body with black housing. Rated for 5A current and 500V AC, with a temperature range of -50°C to 100°C. Nylon dielectric material and UL94 V-0 flammability rating. Through-hole termination and nickel plating.
Current Rating5A
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
Norcomp 171-050-213R021 technical specifications.
General
Body Material
Steel
Color
Black
Contact Material
Brass
Contact Plating
Gold
Contact Type
Signal
Current Rating
5A
Dielectric Material
Nylon
Flammability Rating
UL94 V-0
Gender
Female
Height
10.2mm
Housing Color
Black
Lead Free
Lead Free
Length
52.8mm
Max Operating Temperature
100°C
Min Operating Temperature
-50°C
Mount
Through Hole, Panel
Number of Contacts
50
Number of Positions
50
Number of Rows
3
Package Quantity
40
Packaging
Tray
Plating
Nickel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
171
Termination
Through Hole
Voltage Rating (AC)
500V
Width
15.4mm
Compliance
RoHS
Compliant
Datasheet
Norcomp 171-050-213R021 Datasheet
Download the complete datasheet for Norcomp 171-050-213R021 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

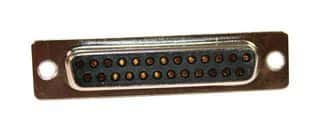

Product Images
