15-position, 2-row D-Subminiature plug connector for panel mounting. Features brass signal contacts with gold plating for reliable connections, rated for 5A current. The white nylon dielectric housing offers UL94 V-0 flammability resistance and operates within a -50°C to 100°C temperature range. Termination is via solder, with nickel plating on the shell.
Package0158
Current Rating5A
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
Norcomp 172-E15-113R011 technical specifications.
General
Package/Case
0158
Color
White
Contact Material
Brass
Contact Plating
Gold
Contact Type
Signal
Current Rating
5A
Dielectric Material
Nylon
Flammability Rating
UL94 V-0
Gender
Male
Height
10.2mm
Housing Color
White
Lead Free
Lead Free
Length
39.2mm
Max Operating Temperature
100°C
Min Operating Temperature
-50°C
Mount
Through Hole, Panel
Number of Contacts
15
Number of Positions
15
Number of Rows
2
Package Quantity
60
Packaging
Tray
Plating
Nickel
RoHS Compliant
Yes
Series
172-E, M Series
Termination
Solder
Width
12.6mm
Compliance
RoHS
Compliant
Datasheet
Norcomp 172-E15-113R011 Datasheet
Download the complete datasheet for Norcomp 172-E15-113R011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

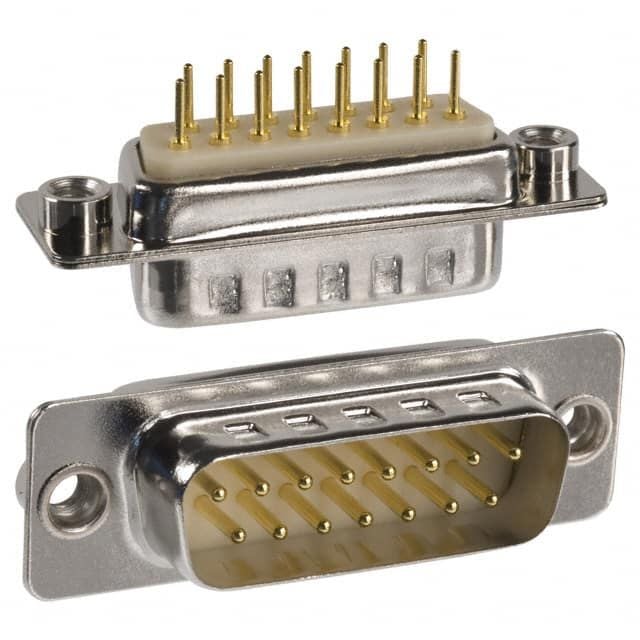

Product Images
