15-position, 2-row right-angle D-Subminiature receptacle with female signal contacts. Features brass contacts with gold plating and a steel body with black housing. Rated for 5A current and operates between -55°C and 105°C. Through-hole termination, UL94 V-0 flammability rating, and RoHS compliant.
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Norcomp 182-015-213R161 technical specifications.
General
Body Material
Steel
Color
Black
Contact Material
Brass
Contact Plating
Gold
Contact Type
Signal
Current Rating
5A
Flammability Rating
UL94 V-0
Gender
Female
Height
12.5mm
Housing Color
Black
Lead Free
Lead Free
Length
39.1mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
15
Number of Positions
15
Number of Rows
2
Package Quantity
70
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
182
Termination
Through Hole
Width
24.9mm
Compliance
RoHS
Compliant
Datasheet
Norcomp 182-015-213R161 Datasheet
Download the complete datasheet for Norcomp 182-015-213R161 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

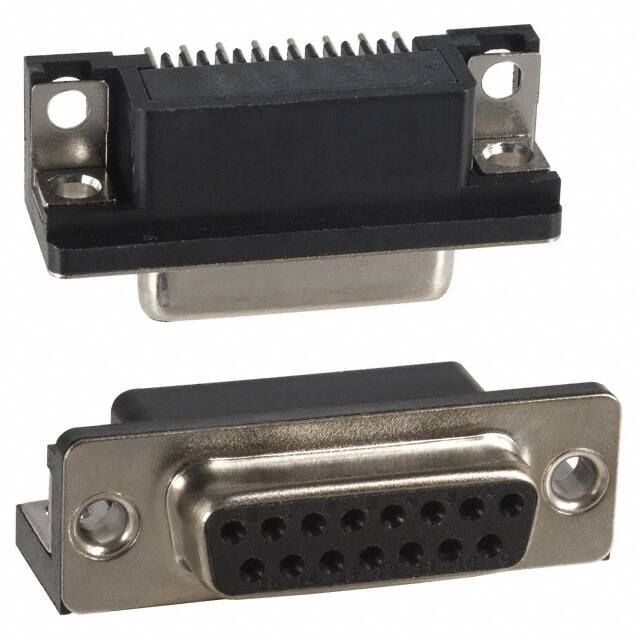

Product Images
