PackageTO-220-3
Current Rating12A
MountingThrough Hole
Quick Jump:
Technical Specifications
NXP BT138-800E technical specifications.
General
Package/Case
TO-220-3
Current Rating
12A
Hold Current
30mA
Lead Free
Lead Free
Length
10.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
800V
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
RMS Current (Irms)
12A
RoHS Compliant
Yes
DC Rated Voltage
800V
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
NXP BT138-800E Datasheet
Download the complete datasheet for NXP BT138-800E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

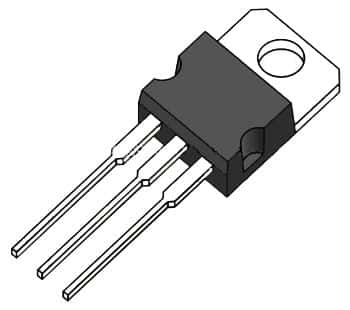

Product Images
