Quadruple unidirectional transient voltage suppressor (TVS) diode array, designed for ESD protection. Features a low capacitance of 90pF and a clamping voltage of 33V. Operates with a reverse standoff voltage of 15V and a maximum breakdown voltage of 20.5V. Offers a peak pulse power of 200W and a peak pulse current of 6A. Packaged in a 6-pin TSOP (SOT457) surface-mount package, this RoHS compliant component operates from -65°C to 150°C.
PackageTSOP
Capacitance90pF
Voltage Rating15V
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PESD15VS4UD,115 technical specifications.
General
Capacitance
90pF
Package/Case
TSOP
Clamping Voltage
33V
Clamping Voltage-Max
33V
Depth
1.7mm
Direction
Unidirectional
ESD Protection
Yes
Height
1mm
Lead Free
Lead Free
Leakage Current
15nA
Length
3.1mm
Max Breakdown Voltage
20.5V
Min Breakdown Voltage
15.5V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
200W
Max Reverse Leakage Current
15nA
Max Surge Current
6A
Mount
Surface Mount
Number of Elements
4
Operating Supply Voltage
15V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
6A
Peak Pulse Power
200W
Polarity
Unidirectional
Radiation Hardening
No
Reverse Breakdown Voltage
15.5V
Reverse Standoff Voltage
15V
RoHS Compliant
Yes
Width
1.7mm
Working Voltage
15V
Compliance
RoHS
Compliant
Datasheet
NXP PESD15VS4UD,115 Datasheet
Download the complete datasheet for NXP PESD15VS4UD,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

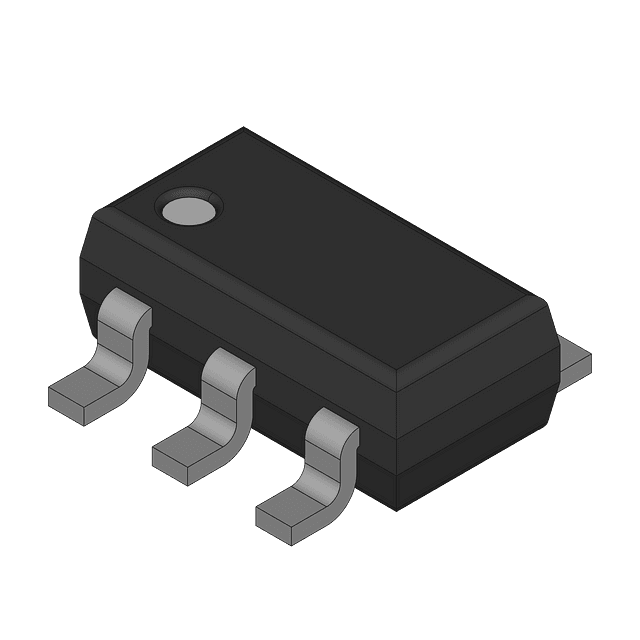

Product Images
