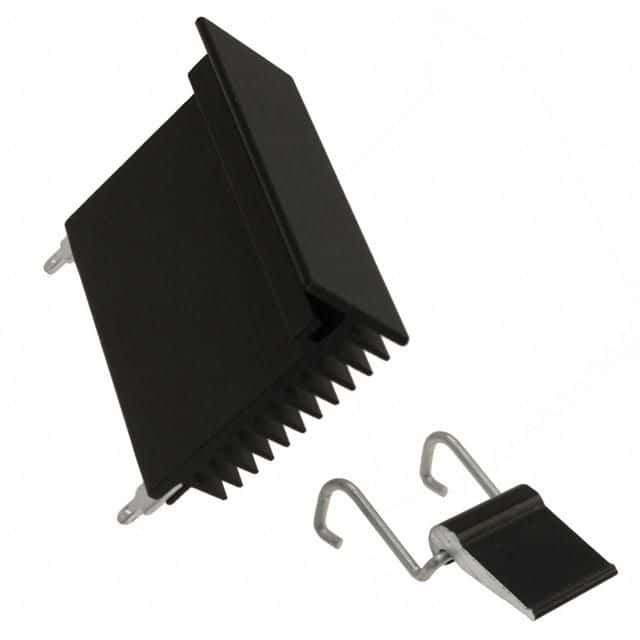

Passive heat sink designed for TO-247 packages. Features anodized black aluminum construction with a rectangular fin shape. Offers a natural thermal resistance of 5°C/W and 5°C/W at 100 LFM forced air flow. Mounts via PC pin or clip, with radial termination. Dimensions include 38mm height, 50mm length, and 18mm width. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ohmite C247-050-2AE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-247 |
| Color | Black |
| Finish | Anodized |
| Height | 38mm |
| Length | 50mm |
| Material | Aluminium |
| Mount | PC Pin, Clip |
| Natural Thermal Resistance | 5°C/W |
| Package Cooled | TO-247 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | C |
| Shape | Fins, Rectangular |
| Termination | Radial |
| Thermal Resistance @ Forced Air Flow (100 LFM) | 5°C/W |
| Type | Passive |
| Weight | 1.1oz |
| Width | 18mm |
| RoHS | Compliant |
