Technical Specifications
On-Shore OSTHD030080 technical specifications.
General
| Color | Grey |
| Contact Plating | Brass, Tin |
| Current | 12A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Number of Levels | 1 |
| Number of Positions Per Level | 3 |
| Packaging | Bulk |
| Plating | Steel |
| RoHS Compliant | Yes |
| Series | OSTHD |
| Termination | Screwless |
| Voltage | 250V |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
On-Shore OSTHD030080 Datasheet
Download the complete datasheet for On-Shore OSTHD030080 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

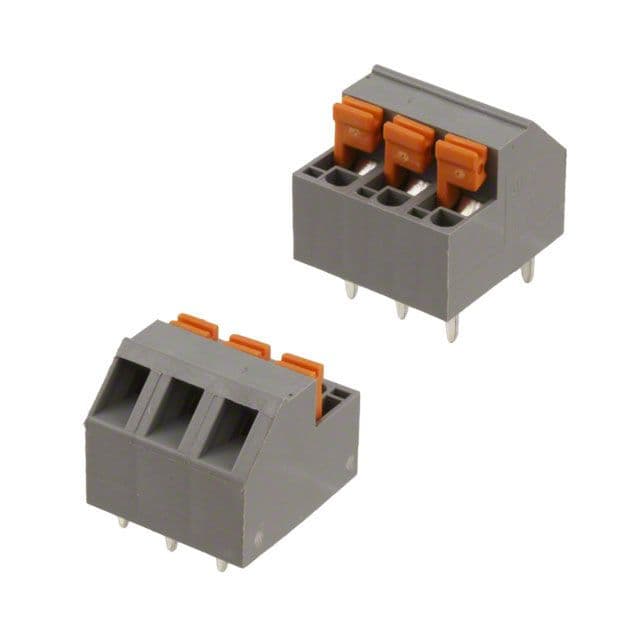

Product Images
