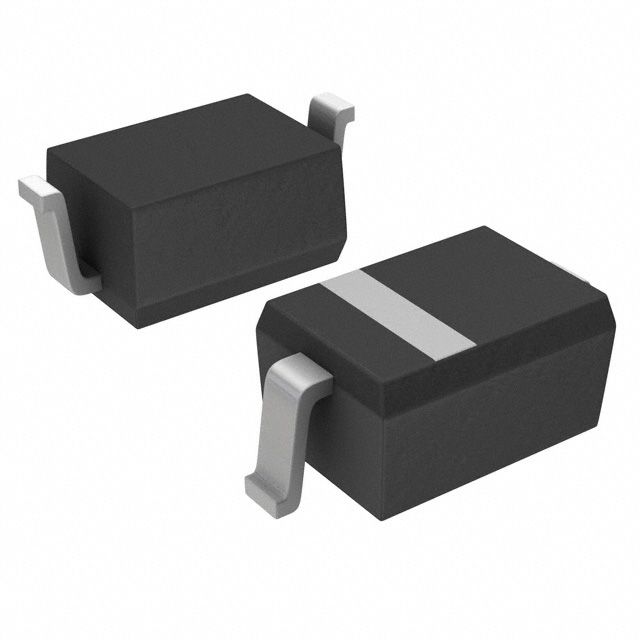

PIN single diode for switching applications, featuring a 35V reverse voltage and 20mA forward current. This RoHS compliant component is housed in a compact SOD-323-2 package, measuring 1.8mm in length, 1.35mm in width, and 1mm in height. It offers a maximum power dissipation of 200mW and operates up to 150°C. Supplied on a 3000-piece tape and reel, this halogen-free diode is ideal for RF switching circuits.
Checking distributor stock and pricing after the page loads.
| Application(s) | SWITCH |
| Package/Case | SOD-323-2 |
| Current Rating | 20mA |
| Diode Type | PIN - Single |
| Element Configuration | Single |
| Forward Current | 20mA |
| Halogen Free | Halogen Free |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 1.8mm |
| Max Current Rating | 20mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 200mW |
| Output Current | 20mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reverse Voltage | 35V |
| Reverse Voltage (DC) | 20V |
| RoHS Compliant | Yes |
| Type | Switch |
| DC Rated Voltage | 20V |
| Width | 1.35mm |
| RoHS | Compliant |
