Schottky Power Rectifier, Surface Mount, SOD-123 package. Features 500mA average rectified current and 30V repetitive reverse voltage. Operates from -65°C to 125°C with a maximum forward surge current of 5.5A. This single element rectifier is halogen-free, lead-free, and RoHS compliant, supplied in 3000-piece tape and reel packaging.
PackageSOD-123-2
Quick Jump:
Technical Specifications
Onsemi NRVB0530T1G technical specifications.
General
| Average Rectified Current | 500mA |
| Package/Case | SOD-123-2 |
| Element Configuration | Single |
| Forward Current | 500mA |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 5.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 130uA |
| Max Reverse Voltage (DC) | 30V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 5.5A |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NRVB0530T1G Datasheet
Download the complete datasheet for Onsemi NRVB0530T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

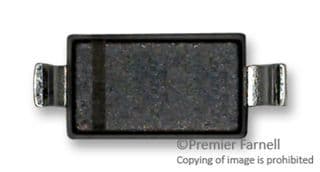

Product Images
