PNP Bipolar Junction Transistor (BJT) in SOT-223 surface mount package. Features a maximum collector current of 4A and a collector-emitter breakdown voltage of 25V. Offers a minimum DC current gain (hFE) of 80 and a transition frequency of 75MHz. Operates within a temperature range of -55°C to 150°C with a maximum power dissipation of 1.2W. Supplied on tape and reel for automated assembly.
Frequency75MHz
PackageSOT-223
Current Rating-4A
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi NZT749 technical specifications.
General
Package/Case
SOT-223
Collector Base Voltage (VCBO)
-35V
Collector Emitter Breakdown Voltage
25V
Collector Emitter Voltage (VCEO)
25V
Collector-emitter Voltage-Max
300mV
Current Rating
-4A
Emitter Base Voltage (VEBO)
-5V
Frequency
75MHz
Gain Bandwidth Product
75MHz
hFE Min
80
Lead Free
Lead Free
Max Collector Current
4A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.2W
Mount
Surface Mount
Number of Elements
1
Package Quantity
2500
Packaging
Tape and Reel
Polarity
PNP
Power Dissipation
1.2W
Series
NZT749
Transition Frequency
75MHz
DC Rated Voltage
-25V
Weight
0.188g
Compliance
RoHS
Not Compliant
Datasheet
Onsemi NZT749 Datasheet
Download the complete datasheet for Onsemi NZT749 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

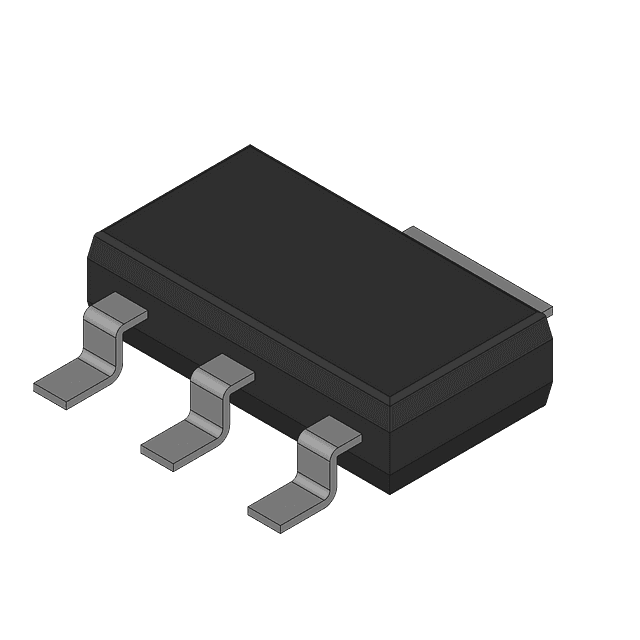

Product Images
