Technical Specifications
Osram SFH2400-Z technical specifications.
General
| Package/Case | SMD/SMT |
| Diode Type | PIN |
| Fall Time | 5ns |
| Lens Style | TRANSPARENT |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 120mW |
| Max Reverse Voltage (DC) | 20V |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Power Dissipation | 120mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 5ns |
| Responsivity | 0.65A/W |
| Reverse Breakdown Voltage | 50V |
| Reverse Voltage (DC) | 20V |
| RoHS Compliant | Yes |
| Viewing Angle | 120° |
| Wavelength | 850nm |
Compliance
| RoHS | Compliant |
Datasheet
Osram SFH2400-Z Datasheet
Download the complete datasheet for Osram SFH2400-Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

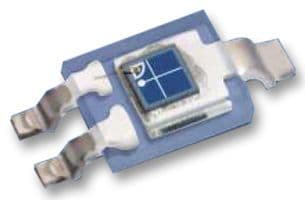

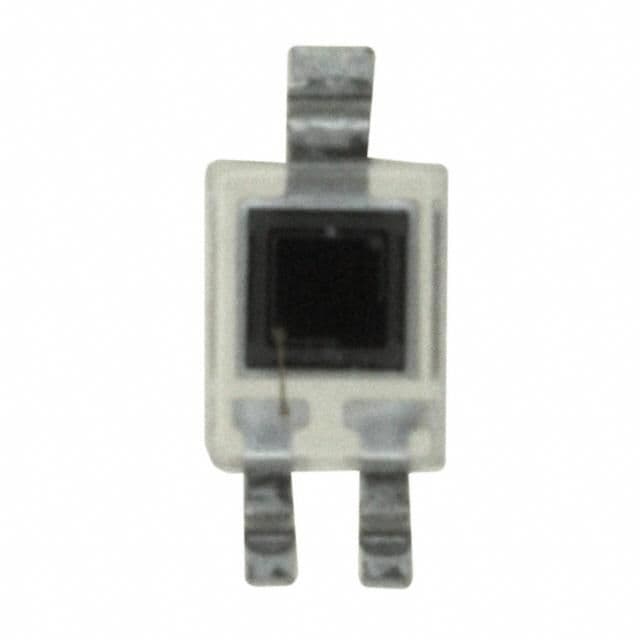

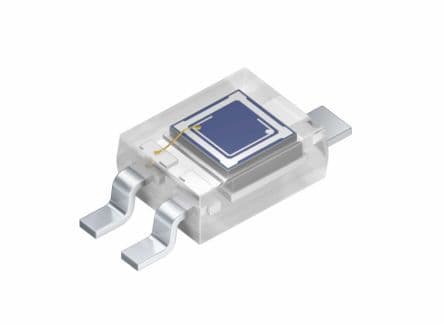

Product Images
