Otto Engineering
T9-CS2-29

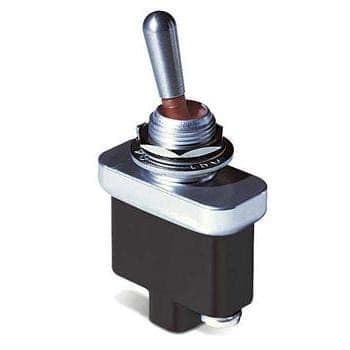

OTTO CONTROLS T9-CS2-29 Toggle Switch, IP68S, Non Illuminated, DPDT, (Off)-None-On, Panel, 20 A
Voltage Rating115V
MountingPanel
Quick Jump:
Technical Specifications
Otto Engineering T9-CS2-29 technical specifications.
General
Actuator Length
0.69inch
Actuator Material
Stainless Steel
Contact Current Rating
11A
Contact Material
Silver
Illumination Type
Illuminated
Max Operating Temperature
71°C
Mechanical Life
40000Cycles
Min Operating Temperature
-65°C
Mount
Panel
Ratings
IP68
Reach SVHC Compliant
Unknown
Termination
Screw
Throw Configuration
DPDT
Voltage Rating
115V
Compliance
RoHS
Compliant
Datasheet
Otto Engineering T9-CS2-29 Datasheet
Download the complete datasheet for Otto Engineering T9-CS2-29 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
