The 2SA10180RA is a NPN transistor from Panasonic with a collector-emitter breakdown voltage of 200V and a maximum collector current of 70mA. It has a maximum power dissipation of 750mW and is packaged in a TO-226-3 case for through-hole mounting. The transistor operates within a temperature range of unspecified limits and is available in quantities of 3000 units per reel. The device has a transition frequency of 50MHz.
PackageTO-226-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic 2SA10180RA technical specifications.
General
| Package/Case | TO-226-3 |
| Collector Emitter Breakdown Voltage | 200V |
| Collector-emitter Voltage-Max | 1.5V |
| Max Breakdown Voltage | 200V |
| Max Collector Current | 70mA |
| Max Power Dissipation | 750mW |
| Mount | Through Hole |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Transition Frequency | 50MHz |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 2SA10180RA Datasheet
Download the complete datasheet for Panasonic 2SA10180RA to view detailed technical specifications.
No datasheet is available for this part.

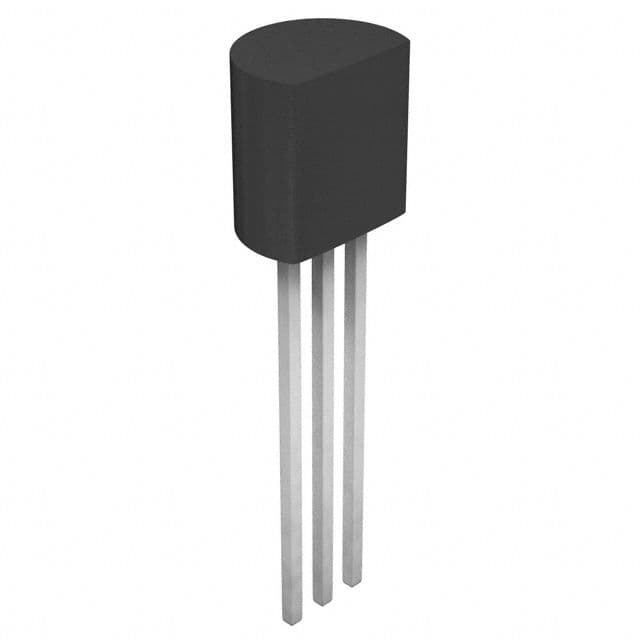

Product Images
