The Panasonic 2SC1318ARA is a bipolar transistor with a collector-emitter breakdown voltage of 70V and a maximum collector current of 500mA. It is packaged in a TO-226-3 case and is suitable for through hole mounting. The transistor has a maximum power dissipation of 750mW and a transition frequency of 120MHz. It is available in quantities of 3000 units, packaged in cut tape.
PackageTO-226-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic 2SC1318ARA technical specifications.
General
| Package/Case | TO-226-3 |
| Collector Emitter Breakdown Voltage | 70V |
| Collector-emitter Voltage-Max | 600mV |
| Max Breakdown Voltage | 70V |
| Max Collector Current | 500mA |
| Max Power Dissipation | 750mW |
| Mount | Through Hole |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Transition Frequency | 120MHz |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 2SC1318ARA Datasheet
Download the complete datasheet for Panasonic 2SC1318ARA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

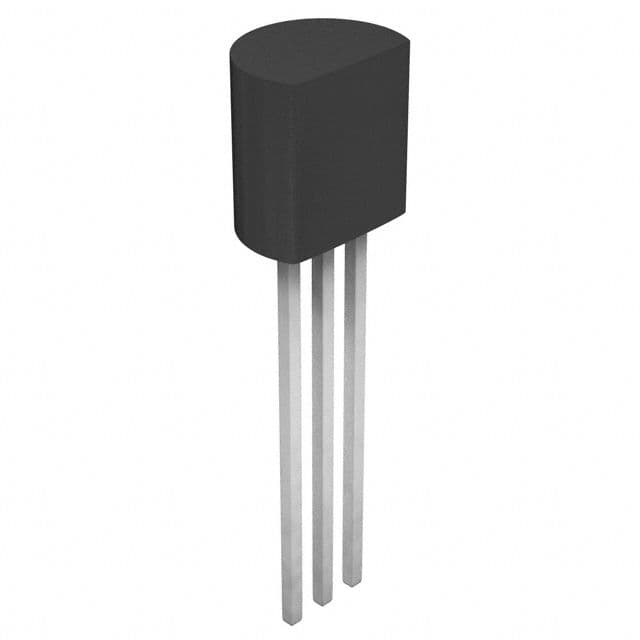

Product Images
