60-position, 2-row board-to-board header/receptacle with a 0.5mm pitch. Features gold-plated copper alloy contacts and a straight, surface mount termination style. Rated for 500mA current and 60V AC/DC, with a maximum operating temperature of 85°C. Offers a mated stacking height of 1.5mm and a depth of 4.8mm. Supplied in tape and reel packaging.
Voltage Rating60V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AXK5F60347YG technical specifications.
General
Contact Material
Copper Alloy
Contact Plating
Gold
Current Rating
500mA
Depth
4.8mm
Gender
Female
Lead Free
Lead Free
Length
18mm
Mated Stacking Heights
1.5mm
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
60V
Max Voltage Rating (DC)
6.06kV
Mount
Surface Mount
Number of Contacts
60
Number of Positions
60
Number of Rows
2
Orientation
Straight
Package Quantity
2000
Packaging
Tape and Reel
Pitch
0.5mm
RoHS Compliant
Yes
Series
P5KF
Termination
Solder
Voltage Rating
60V
Compliance
RoHS
Compliant
Datasheet
Panasonic AXK5F60347YG Datasheet
Download the complete datasheet for Panasonic AXK5F60347YG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

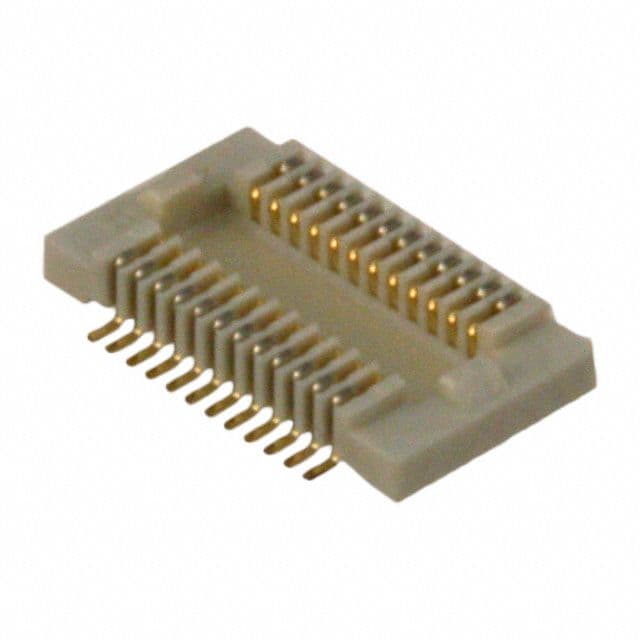

Product Images
