The Panasonic EKMA1102120 is a TO-5 packaged infrared proximity sensor with a sensing distance of 3 meters. It operates over a temperature range of -20°C to 60°C and is suitable for use with a supply voltage of 2.3V to 6V. The sensor has a digital output and can provide an output voltage of 500mV. It is available in bulk packaging with 50 units per package.
PackageTO-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EKMA1102120 technical specifications.
General
| Package/Case | TO-5 |
| Lead Free | Lead Free |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage (DC) | 6V |
| Min Supply Voltage (DC) | 2.3V |
| Max Supply Voltage | 7V |
| Min Supply Voltage | -300mV |
| Mount | Through Hole |
| Operating Supply Voltage | 6V |
| Output Current | 1uA |
| Output Type | Digital, DIGITAL OUTPUT |
| Output Voltage | 500mV |
| Package Quantity | 50 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Sensing Distance | 3m |
| Sensing Method | Infrared (IR) |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EKMA1102120 Datasheet
Download the complete datasheet for Panasonic EKMA1102120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

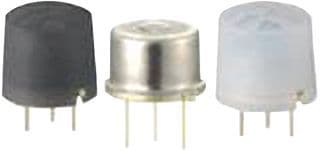

Product Images
