Female crimp splice connector for 22-26 AWG wire, featuring copper contacts with tin plating. This non-insulated component has a 2.03mm diameter, 1.02mm inside diameter, and 11.9mm length. Designed for two wire entries, it utilizes a crimp termination method and is supplied in bulk packaging of 1000 units.
Quick Jump:
Technical Specifications
Panduit BS22-M technical specifications.
General
Contact Material
Copper
Contact Plating
Tin
Diameter
2.03mm
Gender
Female
Inside Diameter
1.02mm
Insulation
Non-Insulated
Length
11.9mm
Material
Copper
Number of Wire Entries
2
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Series
Pan-Term®
Termination
Crimp
Weight
8.320001oz
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
22AWG
Wire/Cable Diameter
26mm
Wire/Cable Gauge
26AWG
Compliance
RoHS
Compliant
Datasheet
Panduit BS22-M Datasheet
Download the complete datasheet for Panduit BS22-M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

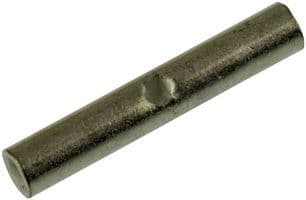

Product Images
