The CCS25-S8-C is a nylon cable clamp with a 6.3mm inside diameter and 9.5mm depth. It is made from nylon, a polyamide material known as PA66, and features a flammability rating of UL94 V-2. The clamp is halogen free and has a maximum operating temperature of 85°C. It is available in natural, beige, and black colors and is packaged in bulk. The clamp is fastened using a screw method and has a width of 9.4mm and a weight of 4.16oz.
Quick Jump:
Technical Specifications
Panduit CCS25-S8-C technical specifications.
General
| Body Material | Nylon |
| Color | Natural, Beige, Black |
| Depth | 9.5mm |
| Diameter | 6.4mm |
| Fastening Method | SCREW |
| Flammability Rating | UL94 V-2 |
| Halogen Free | Halogen Free |
| Inside Diameter | 6.3mm |
| Material | Nylon, Polyamide, PA66 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Weight | 4.16oz |
| Width | 9.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit CCS25-S8-C Datasheet
Download the complete datasheet for Panduit CCS25-S8-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

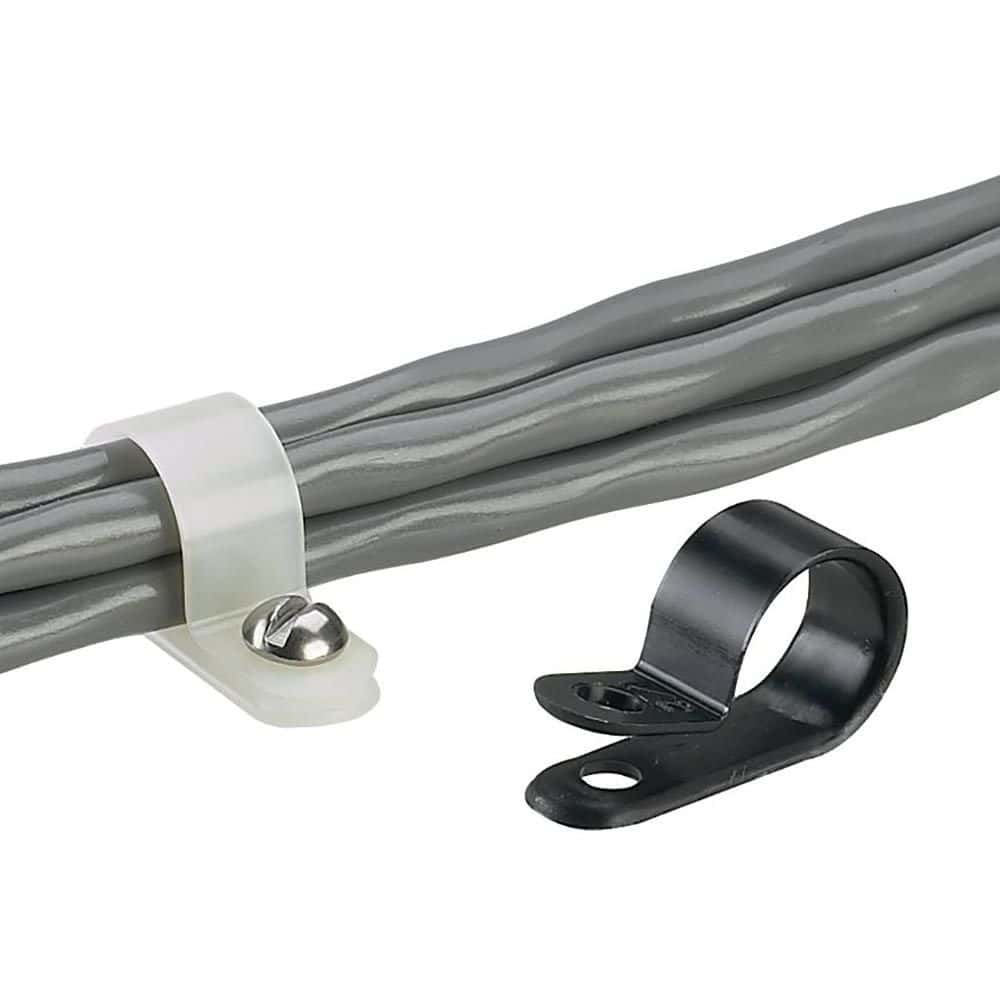

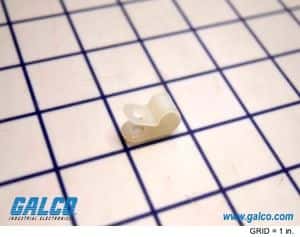

Product Images
