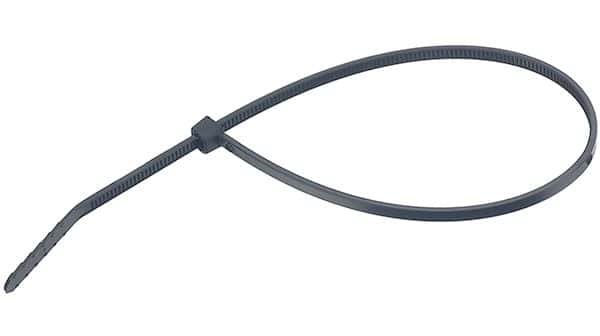

Nylon cable tie, black, 71mm length, 2mm width, 0.8mm thickness, and 3.2mm depth. Features a 15mm maximum wire/cable diameter capacity and a 8 lbs tensile strength. Constructed from Nylon, Polyamide, PA66, with a maximum operating temperature of 85°C and a minimum of -40°C. Mounts as free hanging and is supplied in bulk packaging of 100 units.
Package100
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit PLT.6SM-C0 technical specifications.
General
Body Material
Nylon
Package/Case
100
Color
Black
Depth
3.2mm
Halogen Free
Not Halogen Free
Height
0.095inch
Lead Free
Lead Free
Length
71mm
Material
Nylon, Polyamide, PA66
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Packaging
Bulk
Reach SVHC Compliant
No
Series
PAN-TY® PLT
Shielding
Unshielded
Thickness
0.8mm
Weight
0.32oz
Width
2mm
Wire/Cable Color
Black
Wire/Cable Diameter
15mm
Compliance
RoHS
Compliant
Datasheet
Panduit PLT.6SM-C0 Datasheet
Download the complete datasheet for Panduit PLT.6SM-C0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
