Standard locking cable tie, natural color, made from Nylon 6/6 (Polyamide, PA66). Features a 71mm length, 2mm width, and 0.8mm thickness, with a 15mm maximum wire/cable diameter capacity. Operates within a temperature range of -40°C to 85°C. This free-hanging, unshielded component is supplied in bulk packaging with 1000 units per bag.
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit PLT.6SM-M technical specifications.
General
Body Material
Nylon
Color
Natural
Depth
3.2mm
Halogen Free
Not Halogen Free
Height
2.4mm
Lead Free
Lead Free
Length
71mm
Material
Nylon, Polyamide, PA66
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Package Quantity
1000
Packaging
Bulk
Reach SVHC Compliant
No
Series
PAN-TY® PLT
Shielding
Unshielded
Thickness
0.8mm
Weight
3.2oz
Width
2mm
Wire/Cable Color
Natural
Wire/Cable Diameter
15mm
Compliance
RoHS
Compliant
Datasheet
Panduit PLT.6SM-M Datasheet
Download the complete datasheet for Panduit PLT.6SM-M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

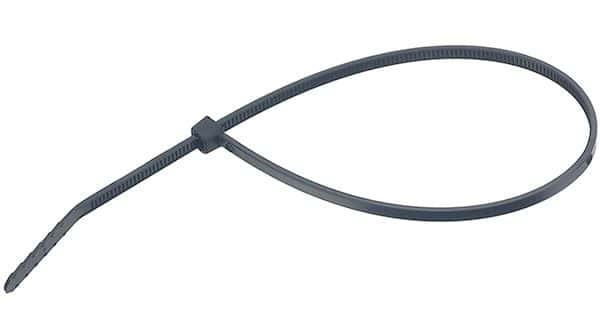

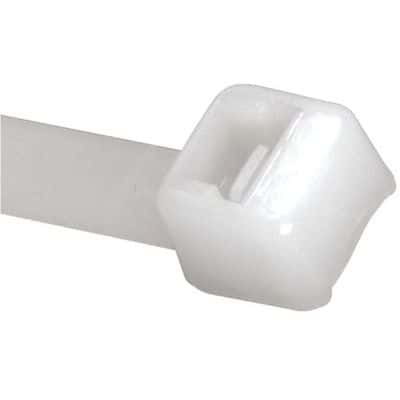

Product Images
