Nylon cable tie, black, 71mm length, 2mm width, 0.8mm thickness, 3.2mm depth, designed for free-hanging mounting. Features a tensile strength of 8 lbs, operating temperature range of -40°C to 85°C, and a maximum wire/cable diameter capacity of 15mm. Constructed from durable nylon (Polyamide, PA66) and is unshielded.
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit PLT.6SM-M0 technical specifications.
General
Body Material
Nylon
Color
Black
Depth
3.2mm
Halogen Free
Not Halogen Free
Height
0.095inch
Length
71mm
Material
Nylon, Polyamide, PA66
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Packaging
Bulk
Reach SVHC Compliant
No
Series
PAN-TY® PLT
Shielding
Unshielded
Thickness
0.8mm
Weight
3.2oz
Width
2mm
Wire/Cable Color
Black
Wire/Cable Diameter
15mm
Compliance
RoHS
Not Compliant
Datasheet
Panduit PLT.6SM-M0 Datasheet
Download the complete datasheet for Panduit PLT.6SM-M0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

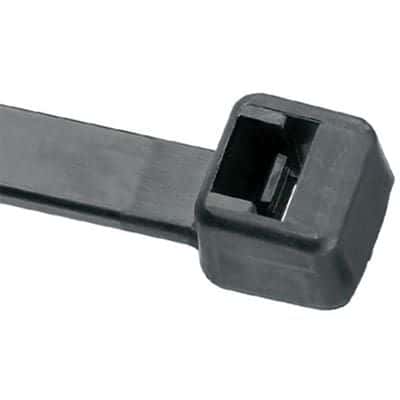

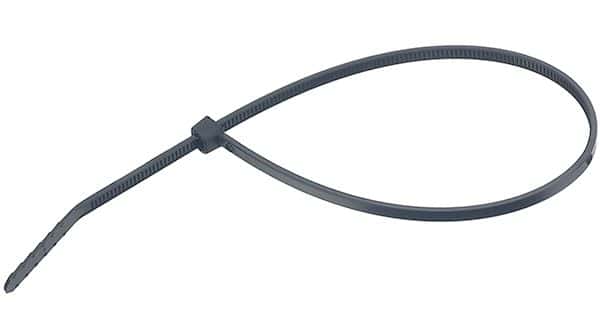

Product Images
