Standard locking cable tie, crafted from Nylon 6/6, offers a 35mm bundle diameter with a tensile strength of 178N. Featuring a natural, clear color, this component measures 142mm in length and 3.6mm in width, with a thickness of 1.1mm. Operating within a temperature range of -40°C to 85°C, it is RoHS compliant and designed for free-hanging mounting. This bulk-packaged item is unshielded and made from durable Nylon, Polyamide, PA66 material.
Package100
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit PLT1.5I-C technical specifications.
General
Body Material
Nylon, Polyamide
Bundle Diameter
35mm
Package/Case
100
Color
Natural, Clear
Depth
6.1mm
Halogen Free
Not Halogen Free
Height
0.18inch
Lead Free
Lead Free
Length
142mm
Material
Nylon, Polyamide, PA66
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PAN-TY® PLT
Shielding
Unshielded
Thickness
1.1mm
Weight
2.4oz
Width
3.6mm
Wire/Cable Color
Natural
Wire/Cable Diameter
35mm
Compliance
RoHS
Compliant
Datasheet
Panduit PLT1.5I-C Datasheet
Download the complete datasheet for Panduit PLT1.5I-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

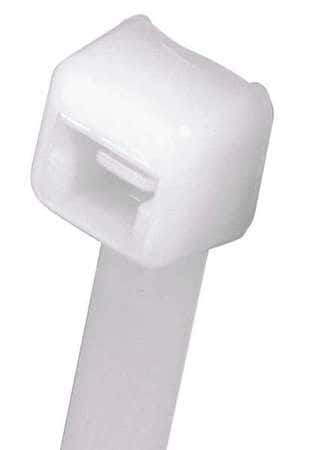

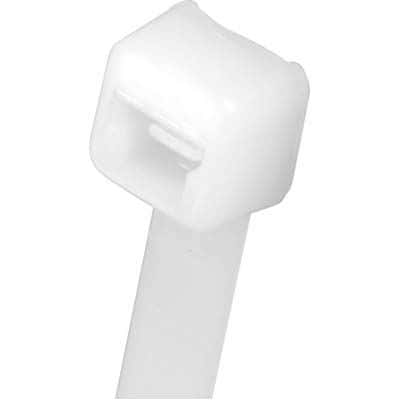

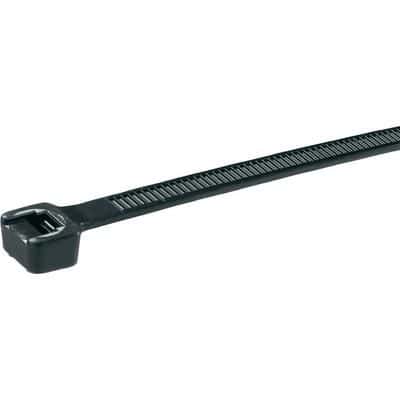

Product Images
