The PAN-TY PLT4H-L cable tie is made from nylon, polyamide, and PA66 materials. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The cable tie is 368mm in length, 7.4mm in height, and 1.9mm in thickness. It is available in a packaging quantity of 50 per bag and is not halogen free.
Package120
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit PLT4H-L technical specifications.
General
| Body Material | Nylon, Polyamide |
| Bundle Diameter | 4inch |
| Package/Case | 120 |
| Color | Natural, Beige |
| Depth | 12.1mm |
| Halogen Free | Not Halogen Free |
| Height | 7.4mm |
| Length | 368mm |
| Material | Nylon, Polyamide, PA66 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 50 |
| Packaging | Bag |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | PAN-TY® PLT |
| Shielding | Unshielded |
| Thickness | 1.9mm |
| Weight | 10.560001oz |
| Width | 7.6mm |
| Wire/Cable Color | Natural |
| Wire/Cable Diameter | 102mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit PLT4H-L Datasheet
Download the complete datasheet for Panduit PLT4H-L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

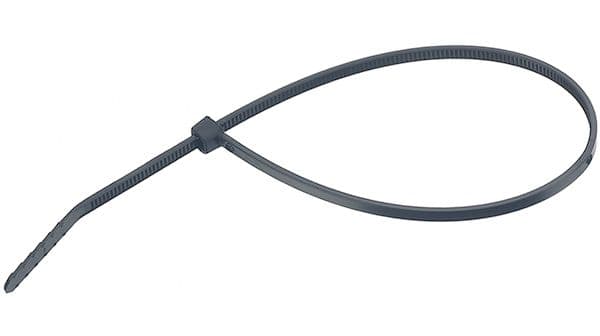

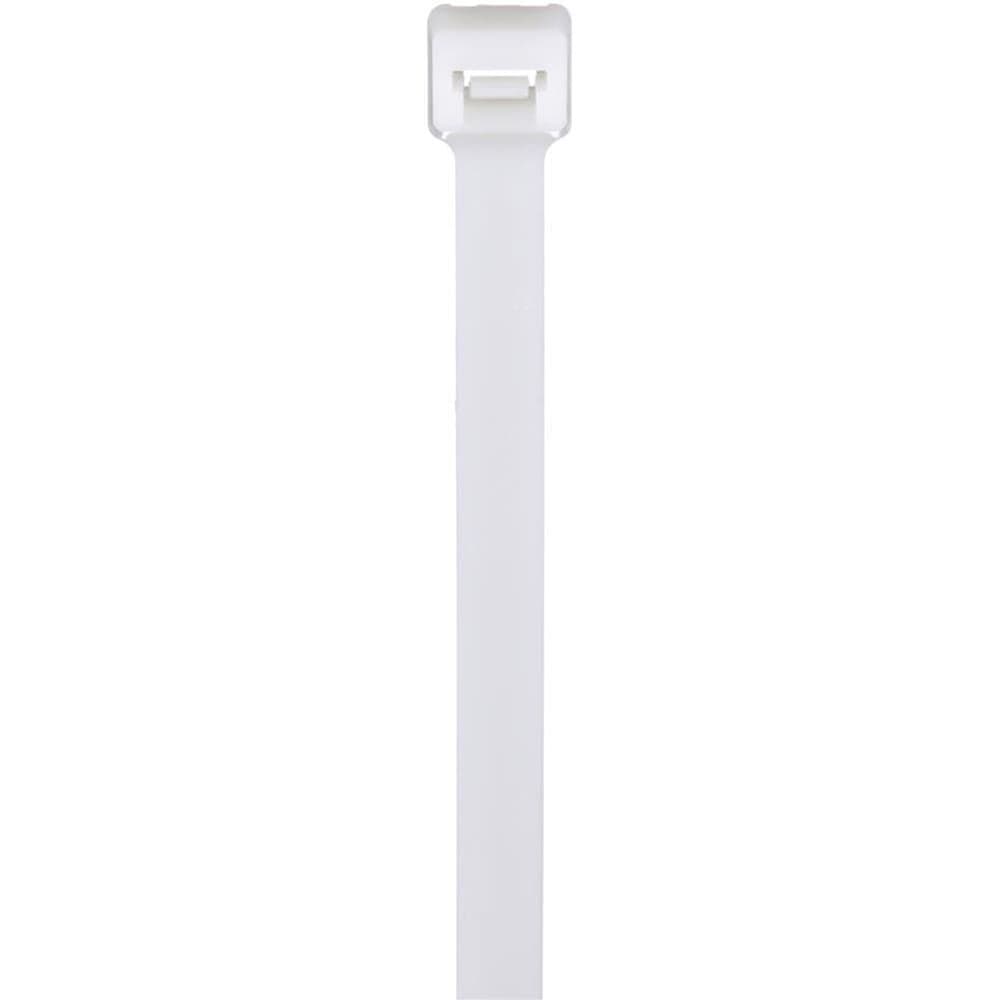

Product Images
