General purpose logic IC output optocoupler featuring 3750V isolation and a single channel. This unidirectional optocoupler offers a PUSH-PULL output type with a high-level and low-level output current of 2A, and a maximum output current of 2.5A. It operates with a 25mA forward current and has a propagation delay of 500ns, with a fall time of 0.1µs. Packaged in a PDIP for through-hole mounting, it supports a temperature range of -40°C to 100°C.
PackagePDIP
MountingThrough Hole
Power295mW
Quick Jump:
Technical Specifications
Broadcom HCPL-3120 technical specifications.
General
Package/Case
PDIP
Direction
Unidirectional
Fall Time
0.1us
Forward Current
25mA
High Level Output Current
2A
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Contains Lead
Low Level Output Current
2A
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
2.5A
Max Power Dissipation
295mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Type
PUSH-PULL
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
295mW
Propagation Delay
500ns
Pulse Width Distortion (PWD)
300ns
Radiation Hardening
No
Reverse Breakdown Voltage
5V
RoHS Compliant
No
Turn-On Delay Time
500ns
Compliance
RoHS
Not CompliantNo
Datasheet
Broadcom HCPL-3120 Datasheet
Download the complete datasheet for Broadcom HCPL-3120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

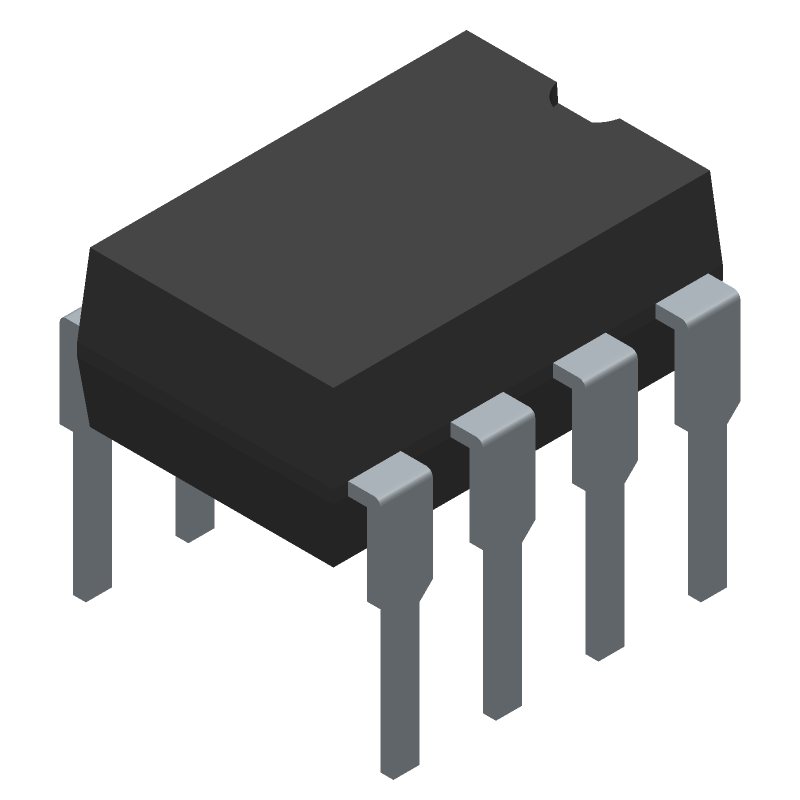

Product Images
