PackagePDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Sharp PC817 technical specifications.
General
| Package/Case | PDIP |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 35V |
| Current Transfer Ratio | 600% |
| Fall Time | 18000ns |
| Forward Current | 50mA |
| Input Type | DC |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Packaging | Sleeve |
| Power Dissipation | 200mW |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Sharp PC817 Datasheet
Download the complete datasheet for Sharp PC817 to view detailed technical specifications.
No datasheet is available for this part.

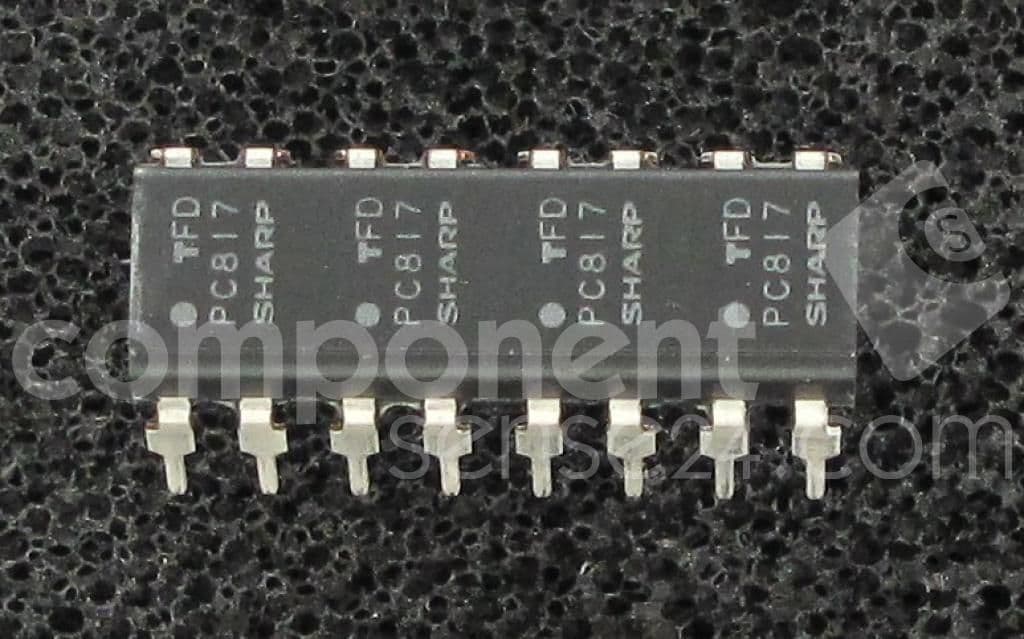

Product Images
