Green diffused T-1 3/4 (5mm) standard LED emitter. Features a 60° viewing angle and 30mcd luminous intensity at a 20mA forward current. Operates within a -40°C to 85°C temperature range with 105mW power dissipation. Through-hole mount, radial package, lead-free construction, and UL approval.
PackageRadial
MountingThrough Hole
Power105mW
Quick Jump:
Technical Specifications
Lumex SSL-LX5093GD technical specifications.
General
Approvals
UL
Package/Case
Radial
Color
Green
Diameter
0.232inch
Forward Current
20mA
Height
8.6mm
Illumination Color
Green
Lead Free
Lead Free
Lens Color
Green
Lens Size
5mm
Lens Style
Round, Domed, Dome, Diffused, Colored
Lens Transparency
Diffused
Luminous Intensity
30mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of LEDs
1
Package Quantity
1000
Packaging
Bulk
Power Dissipation
105mW
Reach SVHC Compliant
No
RoHS Compliant
Yes
Viewing Angle
60°
Wavelength
565nm
Compliance
RoHS
Compliant
Datasheet
Lumex SSL-LX5093GD Datasheet
Download the complete datasheet for Lumex SSL-LX5093GD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

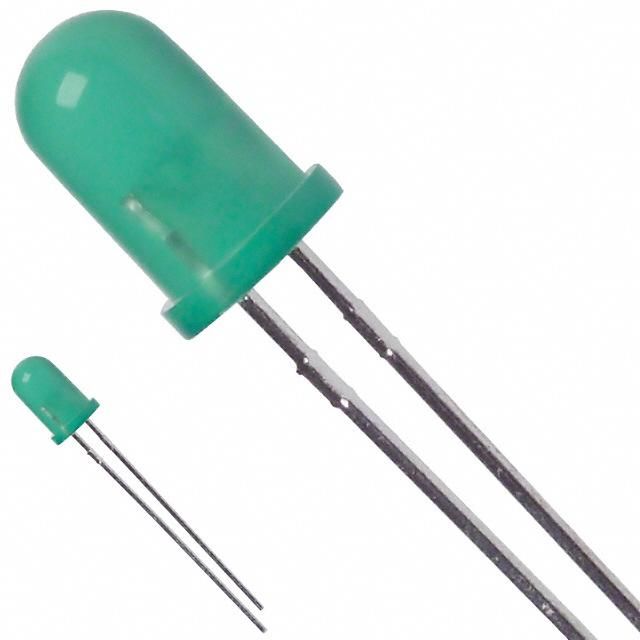

Product Images
