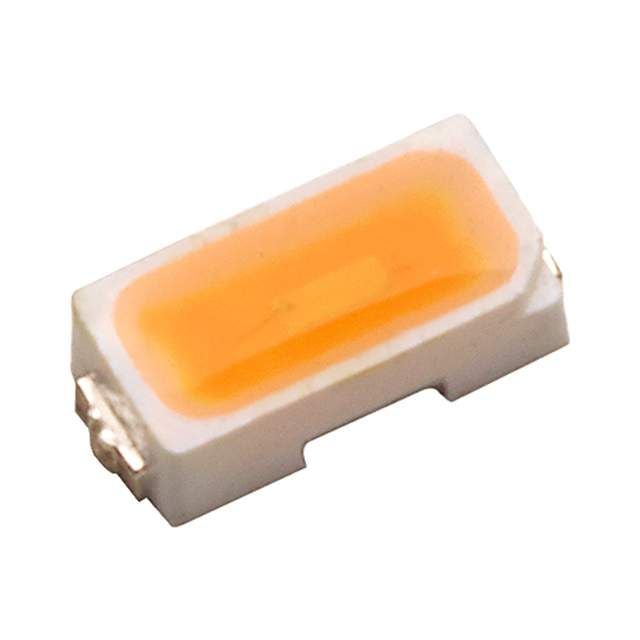

The LUXEON 3014 White LED is a surface-mount device with a luminous flux of 25lm and a maximum current rating of 100mA. It has a correlated color temperature of 4000K and a color rendering index of 80. The LED features a rectangular lens style and a viewing angle of 116°. It is lead-free and RoHS compliant, packaged in cut tape.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Philips L130-4080001400001 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 1206 |
| Package/Case | 3014 |
| Color | White |
| Color Rendering Index (CRI) | 80 |
| Correlated Color Temperature (CCT) | 4000K |
| Lead Free | Lead Free |
| Lens Style | Rectangular |
| Luminous Flux | 25lm |
| Max Current Rating | 100mA |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | LUXEON 3014 |
| Thermal Resistance of Package | 35°C/W |
| Viewing Angle | 116° |
| RoHS | Compliant |
Download the complete datasheet for Philips L130-4080001400001 to view detailed technical specifications.
