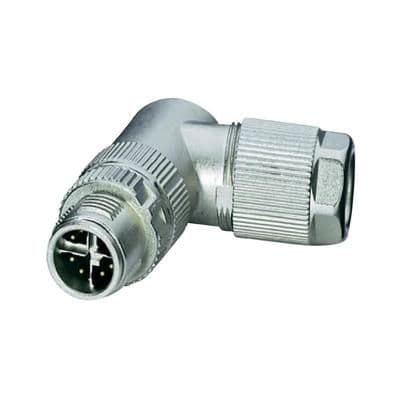

M12 circular connector, male gender, featuring 8 positions and 8 contacts. This right-angle, cable-mount connector offers screw termination with a 500mA current rating and 48V voltage rating. Constructed with copper alloy contacts plated in gold, it operates within a -40°C to 85°C temperature range and boasts IP65 and IP67 ratings for dust-tight and waterproof protection. Shielded for enhanced performance, this lead-free and RoHS compliant component is designed for reliable interconnectivity.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 1417443 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Gender | Male |
| Contact Material | Copper, Nickel, Tin, Gold, Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Features | Shielded |
| Gender | Male |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight, IP67 |
| RoHS Compliant | Yes |
| Series | VS |
| Termination | Axial |
| Voltage Rating | 48V |
| RoHS | Compliant |
