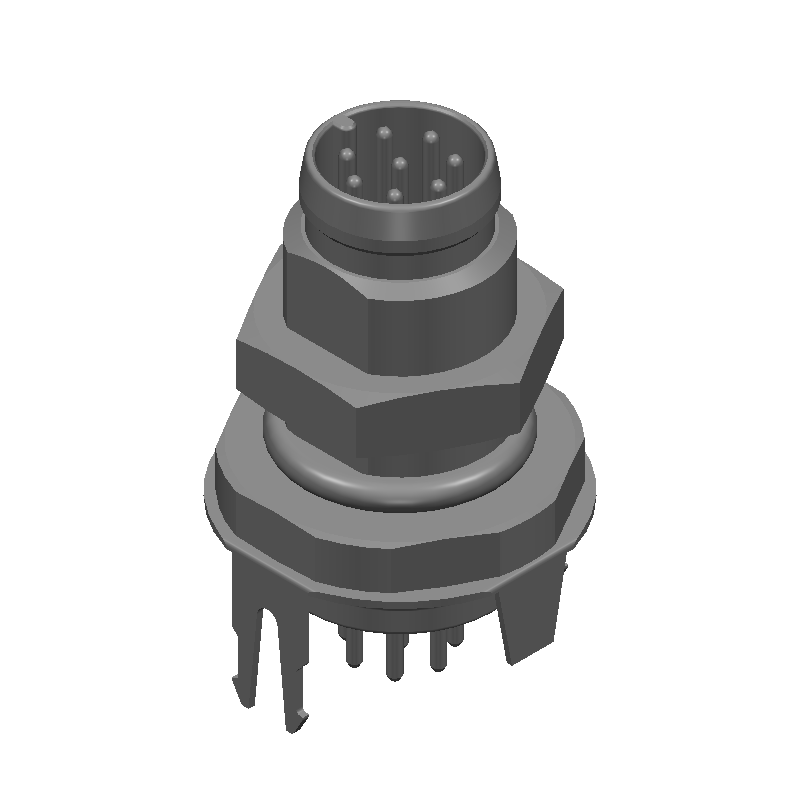

Eight-position, straight male circular connector featuring a copper alloy contact material with gold plating for superior conductivity. This shielded connector offers a 1.5A current rating and 30V voltage rating, with IP67, waterproof, and dust-tight ratings for robust environmental protection. Mounting options include through-hole, panel, bulkhead, and front-side nut, with solder termination for secure connections. Constructed with a zinc die cast shell and nickel finish, this RoHS compliant component is designed for reliable performance.
Voltage Rating30V
Current Rating1.5A
MountingThrough Hole, Panel, Bulkhead, Front Side Nut
Quick Jump:
Technical Specifications
Phoenix Contact 1424236 technical specifications.
General
Color
Silver
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Copper Alloy
Contact Plating
Gold
Current Rating
1.5A
Flammability Rating
UL94 HB
Max Current Rating
1.5A
Mount
Through Hole, Panel, Bulkhead, Front Side Nut
Number of Contacts
8
Number of Positions
8
Orientation
Straight
Packaging
Bulk
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
DSI
Shell Finish
Nickel
Shell Material
ZINC DIE CAST
Shielding
Shielded
Strain Relief
No (Without)
Termination
Solder
Voltage Rating
30V
Voltage Rating (AC)
30V
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1424236 Datasheet
Download the complete datasheet for Phoenix Contact 1424236 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

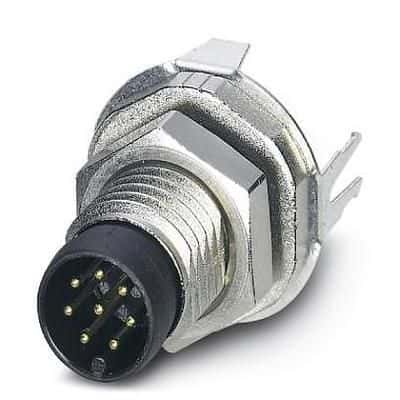

Product Images
