Four-contact, straight panel mount receptacle adapter with brass contacts plated in gold. This silver, waterproof connector features a UL94 HB flammability rating and operates within a temperature range of -25°C to 85°C. Rated IP67, it offers dust-tight and waterproof protection with a 250V voltage rating.
Voltage Rating250V
MountingPanel, Bulkhead
Quick Jump:
Technical Specifications
Phoenix Contact 1424326 technical specifications.
General
Color
Silver
Contact Material
Brass
Contact Plating
Gold
Features
WATERPROOF
Flammability Rating
UL94 HB
Gender
Receptacle
Housing Color
Silver
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Panel, Bulkhead
Number of Contacts
4
Number of Ports
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
Unknown
Series
PLUSCON
Shielding
Unshielded
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1424326 Datasheet
Download the complete datasheet for Phoenix Contact 1424326 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

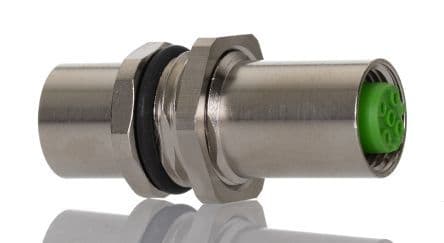

Product Images
