Phoenix Contact
1436564
Circular Connector, 4 Contact(s), Zinc Alloy, Female, Solder Terminal, Socket,
Voltage Rating250V
Current Rating4A
MountingThrough Hole, Panel, Bulkhead
Quick Jump:
Technical Specifications
Phoenix Contact 1436564 technical specifications.
General
Contact Gender
Female
Contact Material
Brass
Contact Plating
Gold
Current Rating
4A
Gender
Male
Max Current Rating
4A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole, Panel, Bulkhead
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
Plating
Nickel, ZINC DIE CAST
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
PLUSCON
Strain Relief
No (Without)
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1436564 Datasheet
Download the complete datasheet for Phoenix Contact 1436564 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

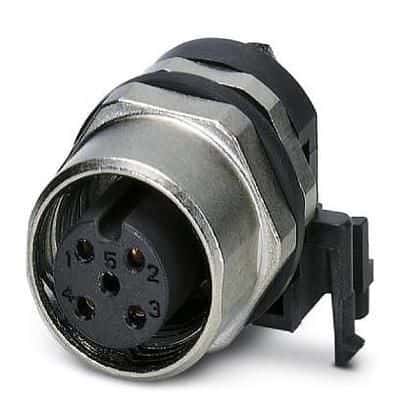

Product Images
