Eight-position, straight, female circular connector featuring gold-plated brass contacts for reliable signal transmission. This shielded, panel-mount component offers a 2A current rating and 30V DC voltage rating, suitable for demanding environments with IP67, waterproof, and dust-tight protection. Operating across a wide temperature range of -25°C to 85°C, it utilizes solder termination and a nickel/zinc die cast plating for durability.
Voltage Rating30V
Current Rating2A
MountingPanel, Bulkhead, Front Side Nut, Through Hole
Quick Jump:
Technical Specifications
Phoenix Contact 1441930 technical specifications.
General
Contact Gender
Female
Contact Material
Brass
Contact Plating
Gold
Current Rating
2A
Features
Shielded
Height
22.6mm
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Panel, Bulkhead, Front Side Nut, Through Hole
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Plating
Nickel, ZINC DIE CAST
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
PLUSCON
Termination
Solder
Voltage Rating
30V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1441930 Datasheet
Download the complete datasheet for Phoenix Contact 1441930 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

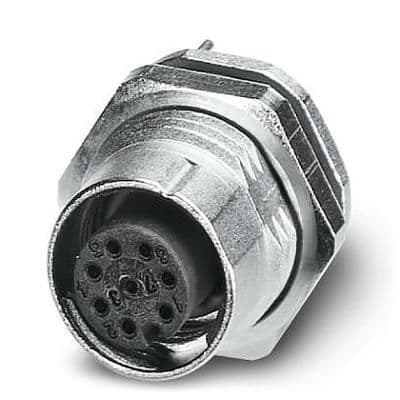

Product Images
