Phoenix Contact
1500402
Sensor/actuator cable, 4-pos., PUR halogen-free black, straight M12 connector, on straight M12 socket, cable length: 10 m
Voltage Rating250V
Current Rating4A
MountingFree Hanging
Quick Jump:
Technical Specifications
Phoenix Contact 1500402 technical specifications.
General
Color
Black
Connector Type A
Receptacle, M12, Plug, Circular
Connector Type B
Plug, M12, Circular
Contact Material
Bronze
Contact Plating
Gold
Current Rating
4A
Gender
Male to Female
Jacket Material
PUR
Length
10m
Max Current Rating
4A
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Number of Conductors
4
Number of Contacts
4
Packaging
Bulk
Ratings
IP65, Waterproof, Water Resistant, Dust Tight
RoHS Compliant
Yes
Shielding
Unshielded
Voltage Rating
250V
Weight
11.005476oz
Wire/Cable Gauge
22AWG
Wire/Cable Type
Round
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1500402 Datasheet
Download the complete datasheet for Phoenix Contact 1500402 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

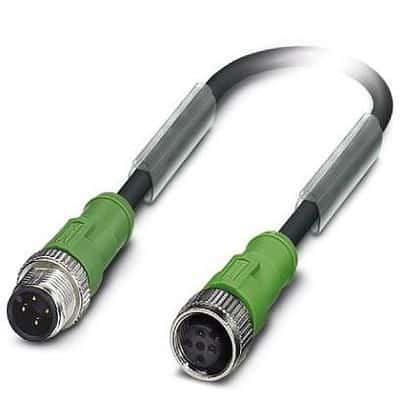

Product Images
