Phoenix Contact
1501838

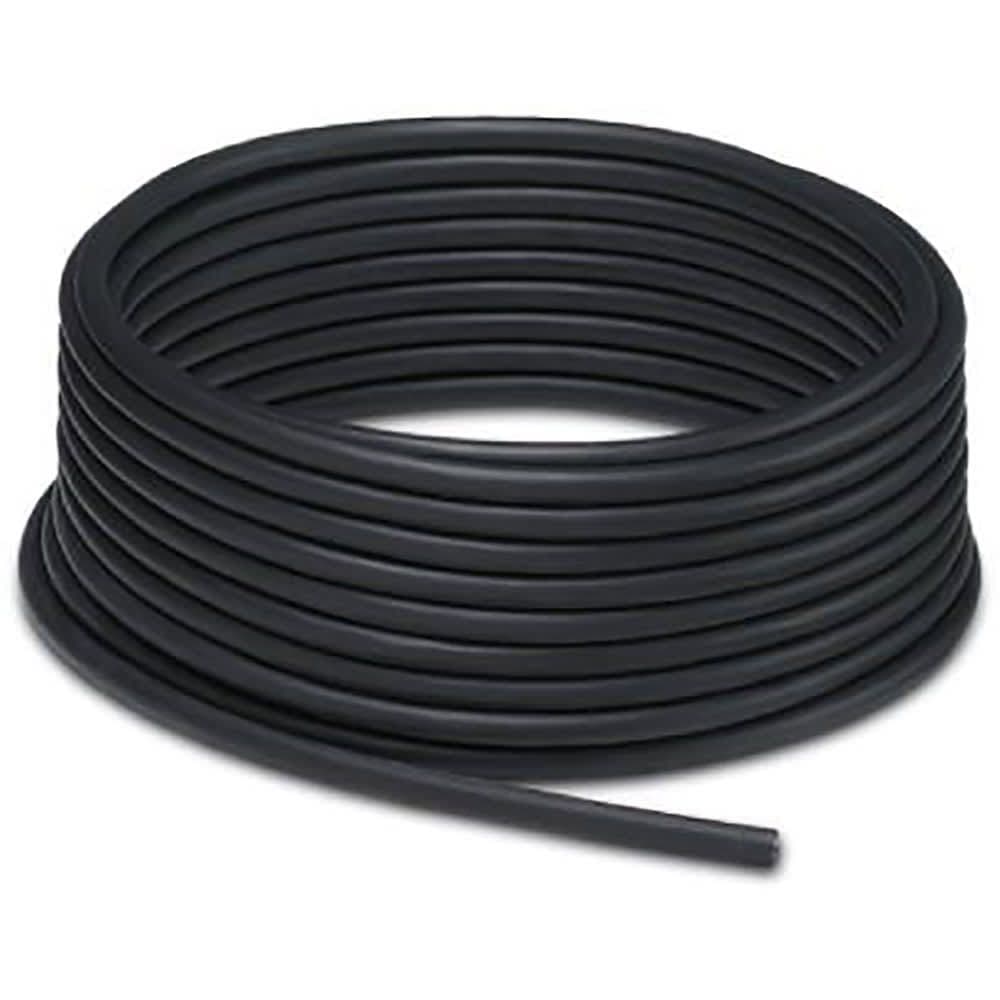

Multi-Conductor Cable Polyvinyl Chloride 4Conductors 22AWG 5.2mm 300V Black 100m
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Phoenix Contact 1501838 technical specifications.
General
| Package/Case | 100 |
| Color | Black |
| Conductor Material | Copper |
| Insulation Diameter | 0.205inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.03inch |
| Length | 100m |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -25°C |
| Mount | Cable |
| Number of Conductors | 4 |
| Number of Cores | 4 |
| Number of Strands | 42 |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 9lb |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Multi-Conductor |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1501838 Datasheet
Download the complete datasheet for Phoenix Contact 1501838 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
