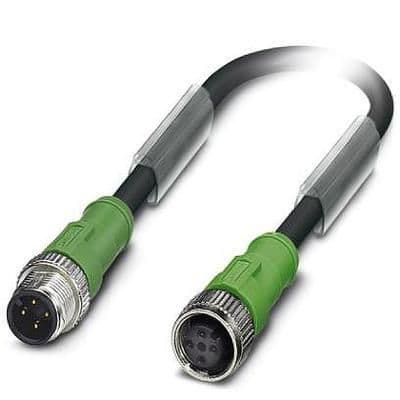

This 5m cable assembly features M12 male to female connectors with gold contact plating, rated for 4A and 18AWG wire. It is designed for use in harsh environments, with an IP65 rating for dust tight and waterproof protection. The assembly is RoHS compliant and suitable for general use.
MountingFree Hanging
Quick Jump:
Technical Specifications
Phoenix Contact 1509568 technical specifications.
General
| Color | Black |
| Connector Type A | Receptacle, M12 |
| Connector Type B | Plug, M12 |
| Contact Plating | Gold |
| Gender | Male to Female |
| Length | 5m |
| Max Current Rating | 4A |
| Mount | Free Hanging |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Weight | 10.599826oz |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1509568 Datasheet
Download the complete datasheet for Phoenix Contact 1509568 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
