Circular connector, 4 positions, male gender, straight orientation, and screw termination. Features brass contacts with gold plating, a 4A current rating, and a 60V voltage rating. This shielded, free-hanging cable mount connector offers IP67, waterproof, and dust-tight ratings, operating between -40°C and 85°C. RoHS compliant and lead-free.
Voltage Rating60V
Current Rating4A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Phoenix Contact 1521261 technical specifications.
General
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold
Current Rating
4A
Features
Shielded
Gender
Male
Lead Free
Lead Free
Max Current Rating
4A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Free Hanging, Cable
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Plating
Brass
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
SACC
Strain Relief
No (Without)
Termination
Screw
Voltage Rating
60V
Weight
1.671986oz
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1521261 Datasheet
Download the complete datasheet for Phoenix Contact 1521261 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

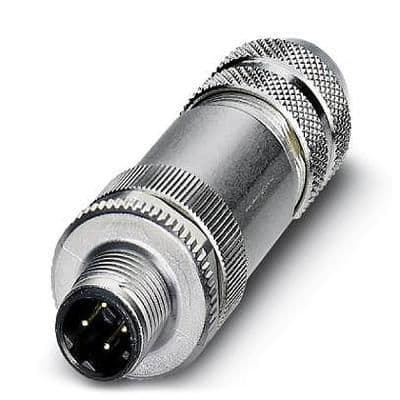

Product Images
